# MyCPO

<figure><img src="/files/e3Qn04P6bEx5jMjyuBQm" alt="" width="518"><figcaption></figcaption></figure>

**STEP 1 - Activate Gateway**

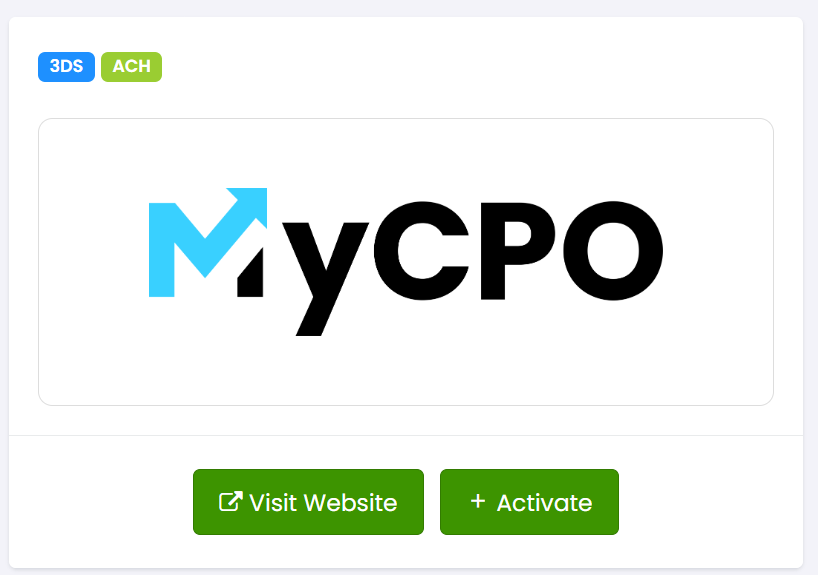

Go to **Gateways | Gateway Integrations** and select the MyCPO tile.

Select the <mark style="color:green;">**+ Activate**</mark> button

<figure><img src="/files/gQ1uuuqmWEQWTCWp7U81" alt="" width="375"><figcaption></figcaption></figure>

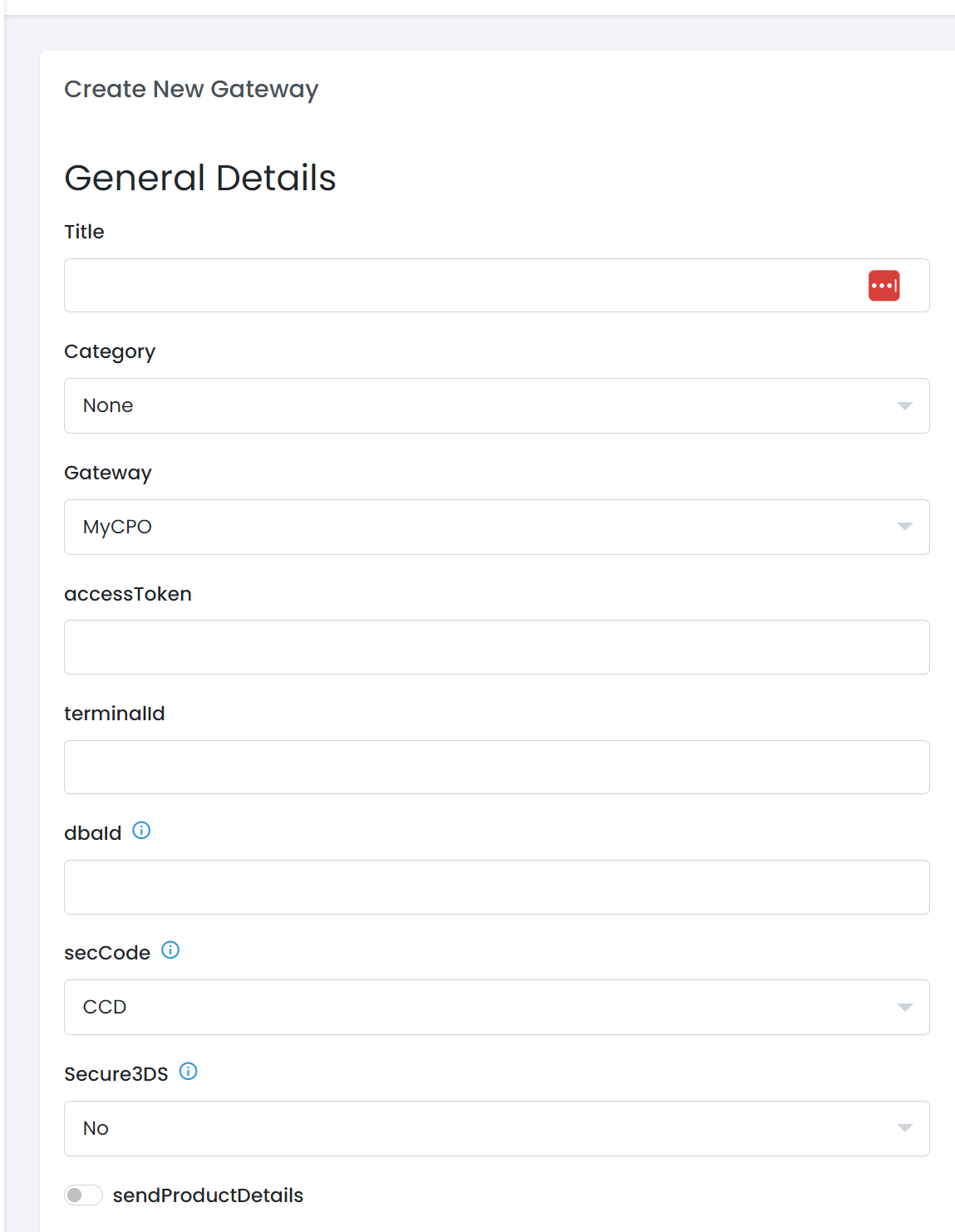

Specify your MyCPO account credentials along with other gateway configuration details and select <mark style="color:green;">**Create Gateway**</mark>.

**dbald** and **secCode** are specific to ACH processing.

Optionally choose to enable **3DSecure** processing.

Use **sendProductDetails** to send products with each sale.

Once the gateway is created, it can be assigned to campaign products and start processing payments.

<figure><img src="/files/RssPWXK0IrZGgzZSTSnV" alt="" width="375"><figcaption></figcaption></figure>

{% hint style="info" %}
This next step can be ignored if using CheckoutChamp hosted pages
{% endhint %}

**STEP 2 - 3D Secure processing**

If using Secure 3DS be sure the checkout page supports the challenge requests

[Direct API 3DS Instructions](/crm/gateway-setup/direct-api-3ds-instructions.md)

A step in the 3DS processing is passing browser information on the Order Import API call.

Review this example of one method to send browserData parameter.

```
browserData input to be added to checkout page:
<input type="hidden" name="browserData" value="" id="browserData">

Script to get browserData:
<script type="text/javascript">
    const navigator = window.navigator;
    const browserData = {
        acceptHeader: 'application/json',
        userAgent: navigator.userAgent,
        language: navigator.language,
        timezone: (new Date()).getTimezoneOffset().toString(),
        colorDepth: screen.colorDepth,
        screen: {
            height: screen.height.toString(),
            width: screen.width.toString()
        },
        javaScriptEnabled: true,
        javaEnabled: navigator.javaEnabled()
    };
    document.getElementById('browserData').value = JSON.stringify(browserData);
</script>
```


---
